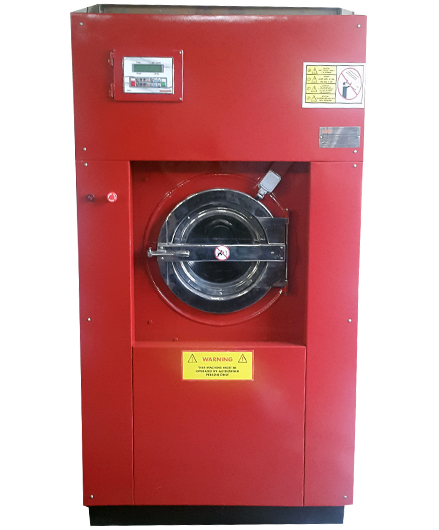

Dry Cleaning Machine (MTO) Automatic High Spin Extractor
Micro Computer
Fully programable computer captures all the features for any customized process. The preset programs can be easily modified or erased. Step by step LCD display provides cycle advance, variable time signal & diagnostic checks. Easy to operate.
Inverter Drive
required for washing, distribution, low & normal spin. The energy efficient drive consumes less energy & reduces electric peak load demands.
Bearing Housing
The housing has wide roller bearings to have large contact area to disperse dynamic forces. Packed with lubricants & sealed. The self lubricating twin water seals & bearing seal are air separated. Prevents contact of water with the bearings.
| MODEL | CAPACITY dry weight per charge (1:10) | CYLINDER SIZE ------------- VOLUME |
DRIVE MOTOR | CYLINDER SPEEDS |
LOADING DOOR OPENING | MTO --------- OIL TANK |
Filter Pump | DIMENSIONS WxDxH |
|
|---|---|---|---|---|---|---|---|---|---|
| Dry Clean | FINAL EXTRACT -------------- G FORCE |
||||||||
| DM-15A | 15 Kg |
Ø 720 x 400 ------------ 154 Ltrs |
3 HP | 45 to 55 RPM | 850 to 900 RPM | Ø 400 | 200 Ltrs | 0.5 HP | 1050 x 1060 x 1700 |
| DM-30A | 30 Kg | Ø 900 x 500 ------------ 318 Ltrs |
7.5 HP | 40 to 50 RPM | 750 to 850 RPM | Ø 500 | 250 Ltrs | 1.0 HP | 1300 x 1400 x 1900 |
All Dimensions are in MM. Standard Machines Operate on 415PV ± 10% 3 Phase, 50 HZ AC Electric Supply. Specifications mentioned above are subject to change without notice.
