Drying Tumbler - by Matharoo Manufacturing Company

Washing Machine with Low Spin Extract Manufacturer

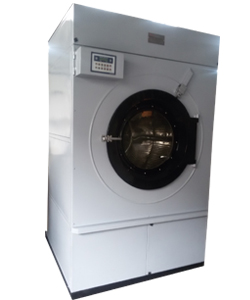

Matharoo Manufacturing Company Drying Tumbler front loading type having Stainless Steel open pocket full drop basket provides quick drying of cloths/garments. The Inner cylinder is perforated and the holes are embossed for smoothness to prevent snaging. The door is fitted with toughened glass enables to see the rotation. The outer body is insulated with glass woll to minimize loss of heat. The large lint trap provides the collection of lint from linen. The safety interlock prevent running machine with door opened. or opening the door during operation. Automatic feature like - auto temperature control, auto stop timer and auto reversing & forwarding timer. Two separate motor for drive & suction blower. Easy to operate & maintain.

MODEL CAPACITY DRY WT. PER/CHARGE BASKET SIZE
––––––––
VOLUME
DRIVE MOTOR
––––––– BLOWER MOTOR
MAIN DOOR OPENING EXHAUST SIZE HEATING OVERALL DIMENSIONS WxDxH APPROX. WT.
STEAM MODEL
CONNECTION / CONSUMPTION
ELECTRICAL MODEL
DT-15 15-20 Kg. 810x600
310
0.37 KW
0.37 KW
36 RPM 25
300 LTR / cycle
0.5" BSP
20 Kg./Hr.
12 KW 900x1100x1600 300 Kg.
DT-25 25-30 Kg. 950x850
600
0.75 KW
0.75 KW
36 RPM 25
550 LTR / cycle
0.5" BSP
40 Kg./Hr.
18 KW 1070x1250x1900 550 Kg.
DT-50 50-60 Kg. 1220x965
1150
1.5 KW
1.5 KW
36 RPM 38
920 LTR / cycle
0.75" BSP
80 Kg./Hr.
24/36 KW 1325x1400x2100 850 Kg.
DT-100 100-120 Kg. 1500x1200
2150
2.5 KW
1.5 KW
(2 Nos.)
30 RPM 50
1750 LTR / cycle
1" BSP
150 Kg./Hr.
48 KW 1650x1800x2400 1650 Kg.

All Dimensions are in MM. Standard Machines Operate on 415PV ± 10% 3 Phase, 50 HZ AC Electric Supply. SPecifications mentioned above are subject to change without notice.
