Flat Work Ironer - by Matharoo Manufacturing Company

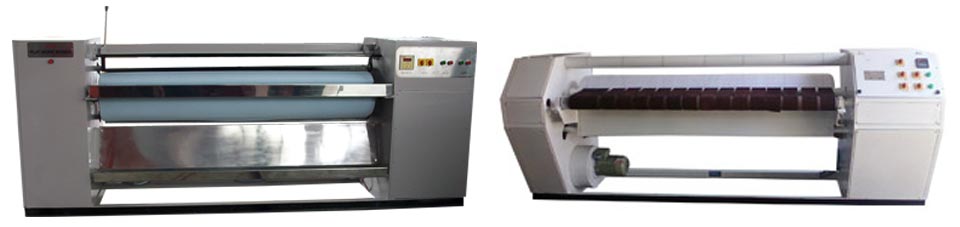

Matharoo Manufacturing Company Flat Work Ironer rear return feed type, single or multiple rolls. Moving chest/roller, with adjustable ironing pressure. Fitted with powerful suction blower, padding feeding & collection tray, feed conveyor. inger guard for operator sfety. Suitable for ironing of flat linen bed sheet, pillow cases, table clothes and napkins etc. Auto temperature control. Equipped with electrical with protection.

Also available in variable speed drive and in return feed (same side) type economy model in defferent size.

FLAT WORK IRONER Manufacturer

MODEL TYPE ROLLER SIZE DIAxLENGTH DRIVE MOTOR SUCTION MOTOR HEATING AIR CONNECTION PRESSURE EXHAUST SIZE OVERALL DIMENSIONS WxDxH APPROX. WT.
STEAM MODEL
CONNECTION / CONSUMPTION
ELECTRICAL MODEL
FW-12 Retuen Feed 300x1800 0.75 KW 0.75 KW 1/2" BSP
40 Kg..Hr.
9 / 12 KW 0.5" BSP
6 Kg./cm2
65 2900x700x1100 750 Kg.
FW-18 Retuen Feed 480x1800 1.5 KW 0.75 KW 1/2" BSP
40 Kg..Hr.
18 KW 0.5" BSP
6 Kg./cm2
65 2400x1000x1200 1200 Kg.
FW-24 Rear Return Feed 650x1500 2.2 KW 0.75 KW 1" BSP
100 Kg..Hr.
15 / 18 KW 0.5" BSP
6 Kg./cm2
75 2650x1250x1250 1800 Kg.
FW-26 Rear Return Feed 650x2150 2.2 KW 0.75 KW 1" BSP
125 Kg..Hr.
18 / 24 KW 0.5" BSP
6 Kg./cm2
100 3250x1250x1250 2250 Kg.
FW-26L Rear Return Feed 650x3000 3.7 KW 1.0 KW 1" BSP
150 Kg..Hr.
18 / 24 KW 0.5" BSP
6 Kg./cm2
100 4250x1250x1250 2500 Kg.

All Dimensions are in MM. Standard Machines Operate on 415PV ± 10% 3 Phase, 50 HZ AC Electric Supply. SPecifications mentioned above are subject to change without notice.
